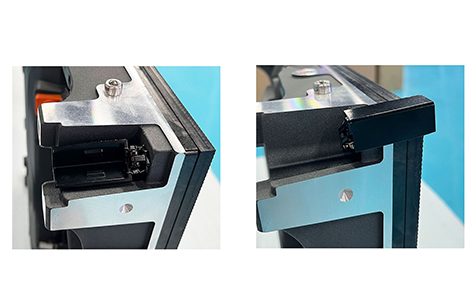

Corner protection design
The display screen adopts a corner protection design to ensure that it is not easily damaged during rental, transportation and installation, and improves durability and safety.
90° Degree Curve Displays
Optional 45° bevel design enables seamless L-shaped and cubic splicing to unlock creative possibilities for professional stage and innovative structural display configurations.

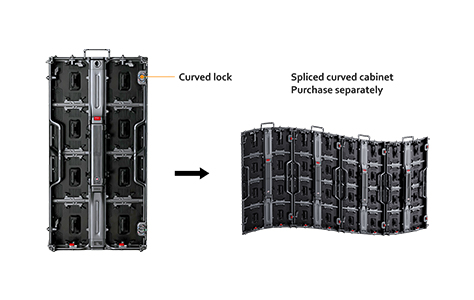

Curved Cabinets
It supports arc splicing function, which can flexibly adjust the screen shape according to the needs of the venue, and is suitable for special scenes such as arc or circular stages.

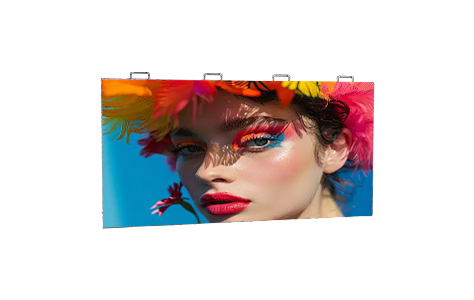

Seamless splicing
The seamless splicing technology is adopted to ensure that there is no obvious gap after the screen is spliced, and the display effect is more coherent and natural, which is suitable for high-demand visual display.
| Parameters | Renatl LED Display Series | |||
| Pixel Pitch(mm) | P1.95 | P2.604 | P2.976 | P3.91 |
| LED | SMD1515 | SMD1415/SMD1515 | SMD1415/SMD1515 | SMD1919/SMD2020 |
| Pixel Density(dots/m²) | 262177 | 147474 | 112910 | 65410 |
| Single Module Resolution(W×H) | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size(mm) | 250×250 | |||
| Cabinet Size(mm) | 500×500 / 500×1000 | |||
| Cabinet Weight(Kg) | 7.5 / 14 | |||
| Cabinet Material | Die cast aluminum | |||
| Application | Indoor | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor |
| Brightness(cd/m²) | 600 | 600-4000 | 600-4000 | 600-4000 |
| Scan Mode | 1/32 | 1/32 & 1/24 | 1/28 & 1/21 | 1/16 |
| Grayscale(bit) | 14 / 16 | |||
| Refresh Rate(Hz) | 3840/7680 | |||
| Viewing Angle | H140°/V120° | |||
| Maintenance | Front Maintenance | |||
| Storage Temperature | ﹣20℃~80℃ | |||
| Operating Humidity | 10%~85% | |||
| Operation Voltage | AC220V±10%(Optional AC110V) | |||
